Submersible DRAINAGE Electric Pump clear water TOP3 5MT 0,75Hp 240V Pedrollo Z1

TOP Submersible DRAINAGE pump for clear water&nbspPEDROLLO&nbsp48TOP13A1 ModelTOP 3 5MT Liquid TypeClean Water Power SupplySingle Phase kW0,55 Hp0,75 Flow Rate Q L/min20 ÷ 260 Head H Metres10 ÷ 2 Outlet1¼" Power Cable5 meter Float Switchwith float switch Pump BodyTechnopolymer ImpellerNoryl Engine FeaturesShaft with double seal and oil chamberINSTALLATION AND USE

The TOP series is suitable for use with clear water that does not contain abrasive particles.

As a result of the design solutions that have been adopted, such as the complete cooling
of the motor and the shaft with double seal, these pumps are easy to use and reliable.

They are suitable for use in applications such as draining small flooded areas (rooms,
cellars, garages) in the event of an emergency, for the disposal of waste water in the home
(from dishwashers, washing machines) and for emptying drainage traps.

FEATURES

Liquid type: clean water

Uses: domestic

APPLICATIONS:
emptying tanks,
drainage.

Typology: submersible

Family: submersible pumps

APPLICATION LIMIT:

Temperature of the liquid to +40 °C

IMMERSION DEPTH: (with a sufficiently long power cable)
3 m for TOP 1-2-3
5 m for TOP 4-5

Maximum liquid temperature +90 °C for a maximum of 3 minutes intermittent service

Passage of suspended solids up to Ø 10 mm

SUCTION LEVEL:
14 mm above ground level for TOP 1-2-3
30 mm above ground level for TOP 4-5

Continuous service S1

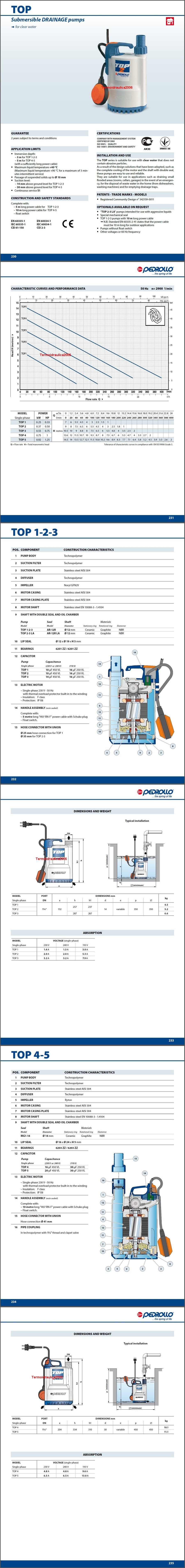

DATA SHEET <!-- Generated by Ready Pro - Begin -->Generated by Ready Pro
